UMTAS
Long-Range Anti-Tank Missile System

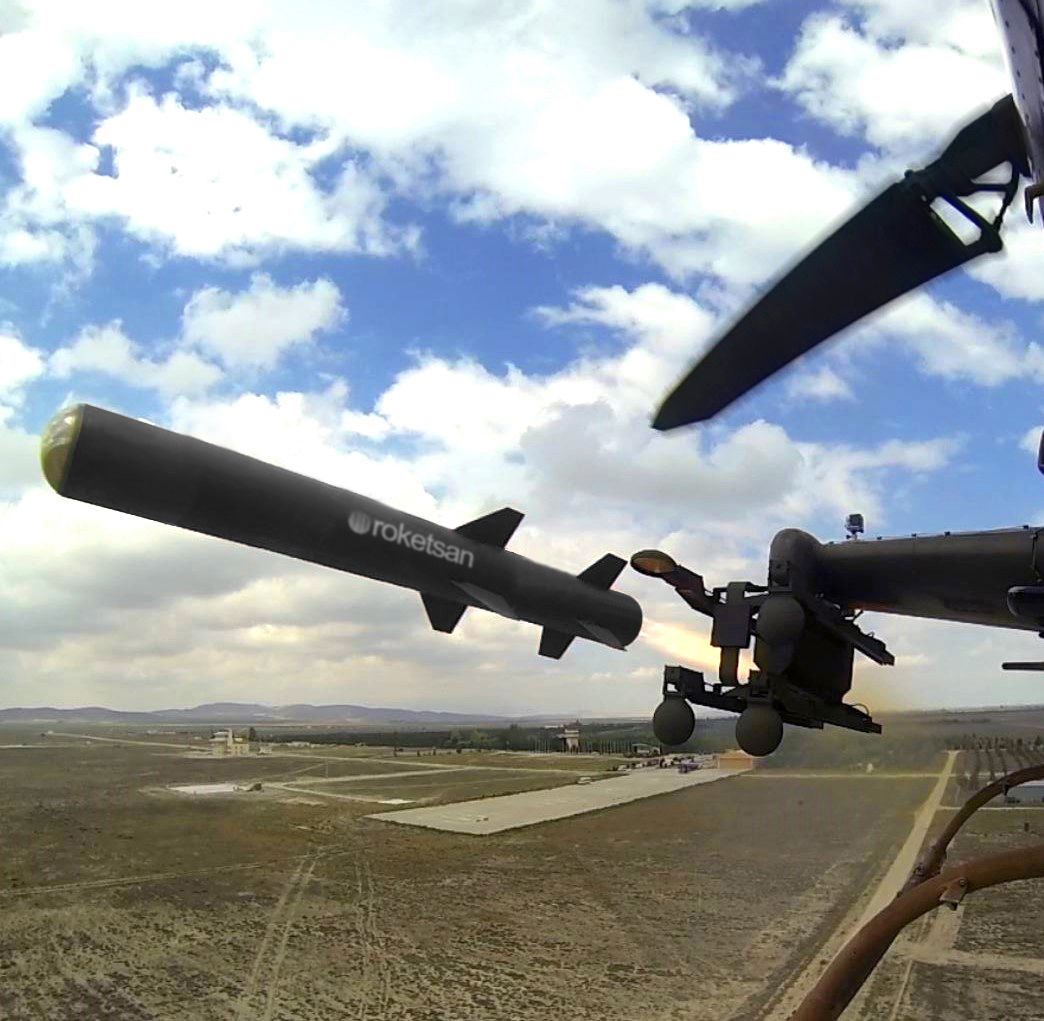

Long-Range Anti-Tank Missile System [UMTAS] is an anti-tank precision guided missile system that has been developed for integration primarily with attack helicopters. Its Imaging Infrared Seeker permits day and night use, and in all adverse weather conditions.
The missile has fire-and-update flight modes that permit lock-on before or after launch through the RF data link between the launcher and the missile. Its precision guidance and control capability, together with its tandem armour piercing warhead, make UMTAS an effective weapon system against armoured targets.
System Specifications
Effective against Static and Mobile Targets
Target Update Capability Enables;
- Target Update
- Switch of Target During Flight
- Fire from Behind Cover
Insensitive Munition Characteristics against Fuel Fire and Bullet Impact
Platforms
- Attack Helicopters
- Light Attack Aircraft
- Land Vehicles
- Naval Platforms
Technical Specifications
| Diameter | 160 mm |
| Length | 1,8 m |
| Weight | 37,5 kg |
| Range | 0,5-8 km |
| Seeker | IIR*, RF Data Link |
| Warhead Type | Tandem High-Explosive Anti-Tank Blast Fragmentation |
| Attack Modes | Direct Attack / Top Attack |
| Operation Modes | Fire-and-Forget Fire-and-Update |
| Launcher | Quadruple or Double |
| Standard Interface | MIL-STD-1760 |
*IIR Imaging Infra-Red
