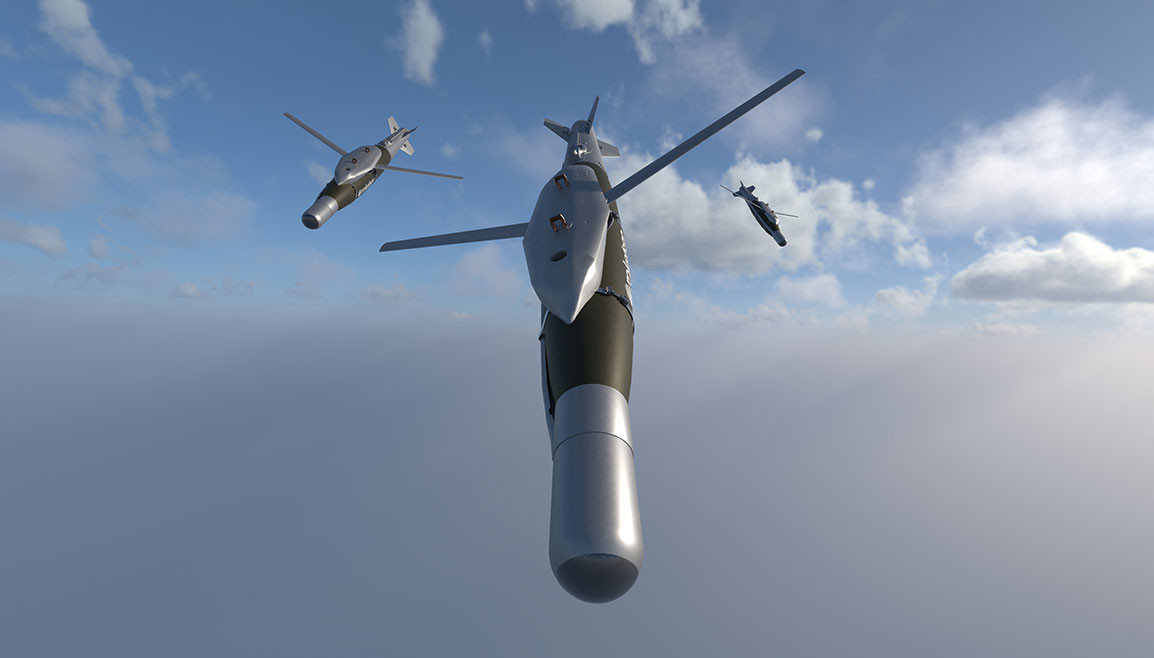

Guidance Kit and LAÇİN POD (L-POD)

LAÇİN guidance kit can be used against fixed and mobile targets with its imaging infrared seeker and data link.

LAÇİN, in which the pilot is kept in the loop via L-POD, is compatible with MK-82 general- purpose bombs. The guidance kit transforms General- Purpose Bombs into smart weapon systems through the integration of an Inertial Measurement Unit [IMU], a Global Positioning System [GPS] and an Infrared Seeker.

The L-POD transmits the image signal produced by the Infrared Seeker to the cockpit via the datalink, and simultaneously sends the commands inputted by the pilot to the LAÇİN munition.

Techincal Specifications

Guidance IMU*
Infrared Seeker
Warhead Type MK-82
Range [Min, Max] 2 - 28 km
Accuracy < 3 m
Transport Altitude 0-40.000 feet
Types of Targets Static
Mobile Targets
Weight 262 kg
Length 2,7 m


*IMU Inertial Measurement Unit
**GPS Global Positioning System
