Laser Guided Missile

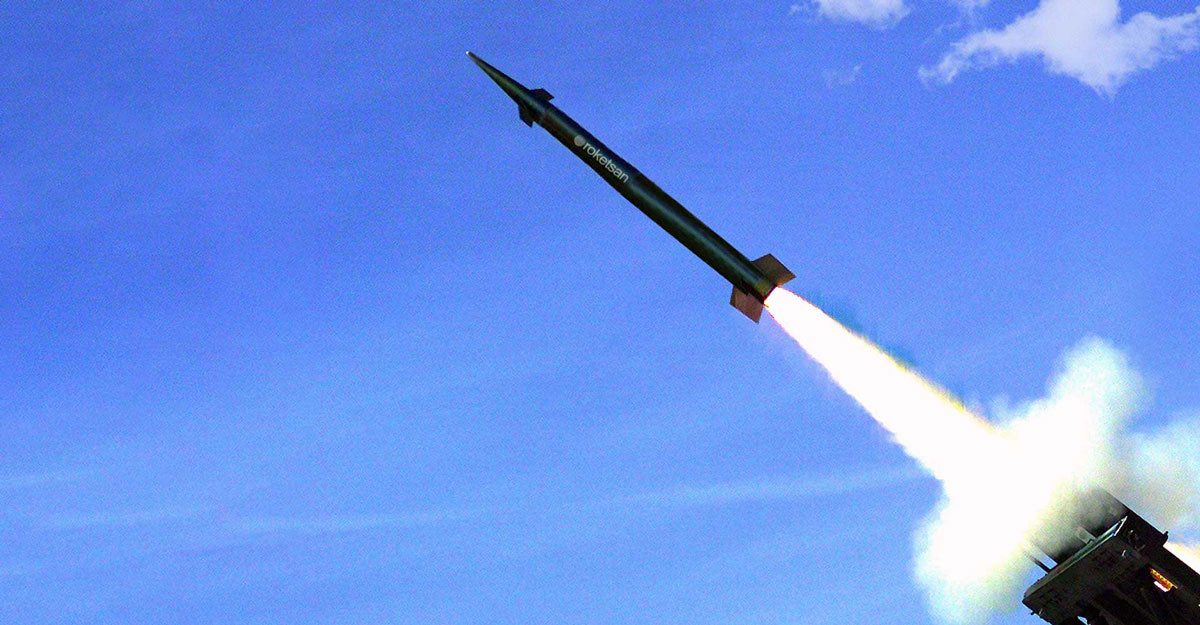

TRLG-230 Missile provides accurate and effective fire power on high priority targets within the ranges 20 - 70 km.

TRLG-230 Missile can be launched from ROKETSAN MCL [Multi-Caliber Launcher] Artillery Weapon System and other platforms with compatible interfaces.

System Specifications

  • Combat Proven
  • Ready to Fire in a Short Time
  • Pin Point Accuracy
  • Low Collateral Damage
  • Precision Strike Capability
  • Pod Structure for Transportation, Storage and Firing
  • Other High Priority Targets

Potential Targets

  • Artillery and Air Defence Systems
  • Radar Sites
  • Assembly Areas
  • Logistic Facilities
  • C3 Facilities

Technical Specifications

Diameter 230 mm
Weight 210 kg
Range 20 - 70 km
Guidance GPS* + GLONASS** Aided INS*** + LASER SEEKER****
Control Aerodynamic Control with Electromechanical Actuation System
Propellant Type Composite Solid
Warhead Type HE*****+ Steel Ball
Warhead Weight 42 kg
Warhead Effective Radius ≥ 55 m
Fuze Type Point Detonating and Proximity [Optional]
Shelf Life 10 years
Accuracy [CEP****] ≤ 2 m

*GPS Global Positioning System
**GLONASS Global Navigation Satellite System
***INS Inertial Navigation System
****LASER  SEEKER Compatible with Stanag 3733
*****HE High Explosive
